Pressa Galfer 60 ton

  • Codice: ABKJ001
  • Marca: Galfer
  • Tonnellaggio: 60
  • Descrizione:
    • Marca/make Galfer
    • Capacità/capacity 60 ton
    • Forza apertura/opening capacity 6 ton
    • Pressione max/max pressure 265 bar
    • Corsa mazza/ram's stroke 400 mm
    • Luce vericale/vertical light 700 mm
    • Luce fra colonne/light between columns 700 x 400 mm

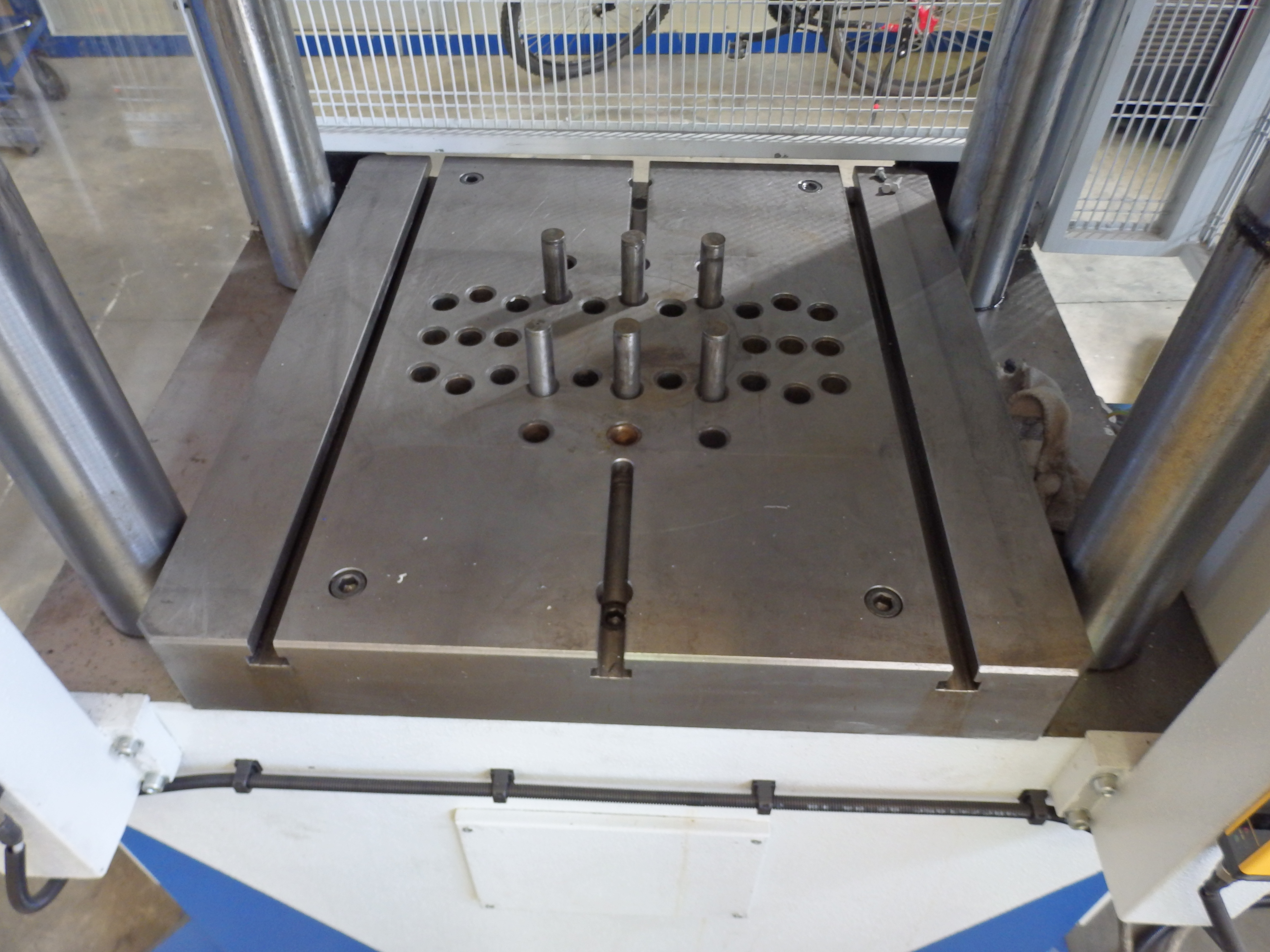

    • Piano/table 690 x 710 mm
    • Mazza/ram 980 x 680 mm
    • Velocità discesa veloce /high fall speed 24 mt/sec
    • Velocità disceza lenta/slow fall speed 3.5 mt/min
    • Velocità di lavoro/working speed 1.3 - 3-5 mt/min
    • Velocità salita/coming up speed 25 mt/min
    • Forza premilamiera/blankholder's capacity 25 ton
    • Corsa max/stroke 200 mm
    • Mazza/ram 450 x 450 mm
    • Velocità salita/coming up speed 8.3 m/min
    • Forza di controreazione/counter reactionc apacity 4 ton
    • Pressione max/max pressure 200 mm
    • Corsa max/ma stroke 100 mm
    • Velocità di uscità/exit speed 6 m/min
    • Motore elettrico/motor 1.5+1.5
    • Peso/weight 9.000 kg aprox
