Product sold

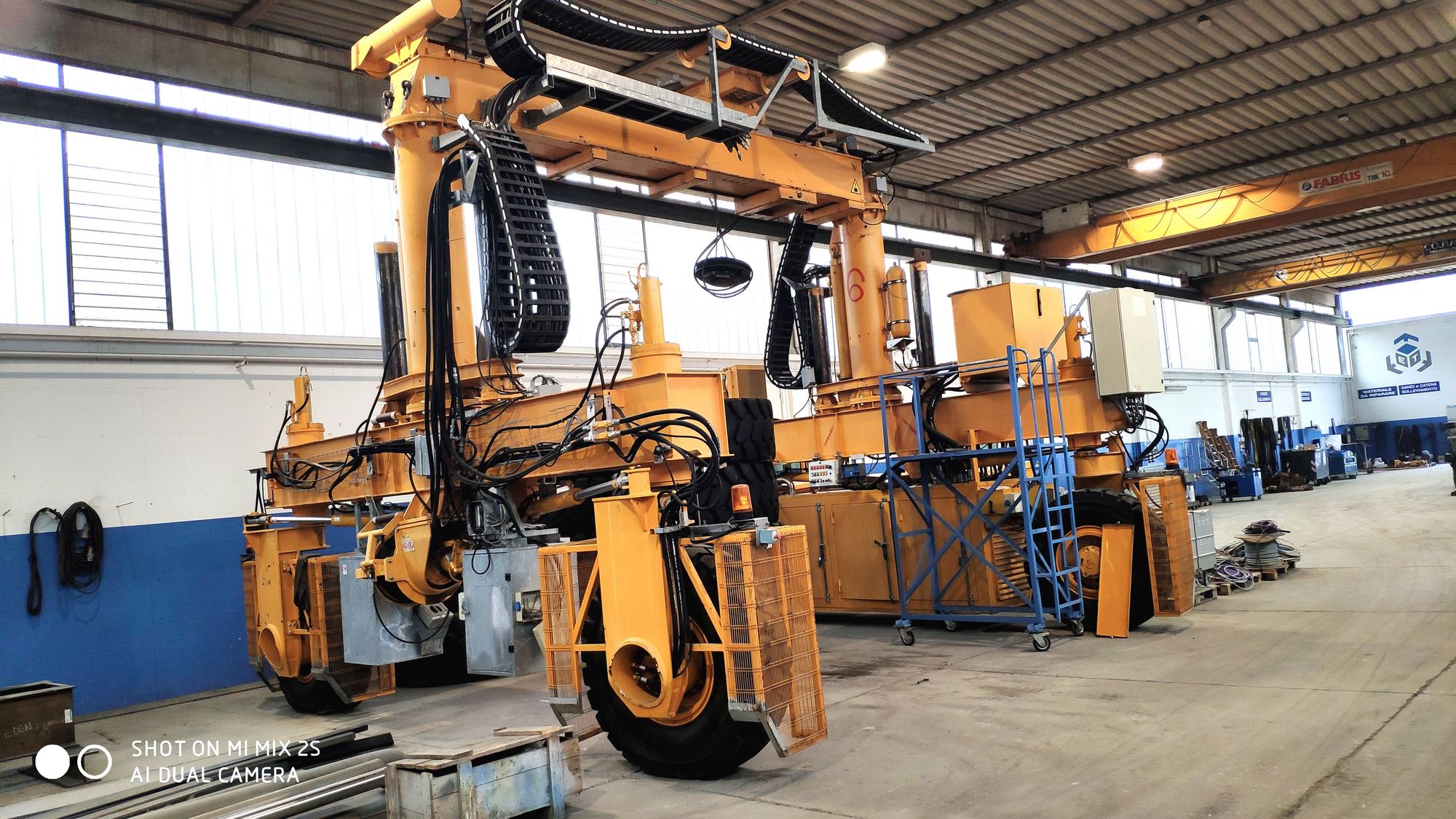

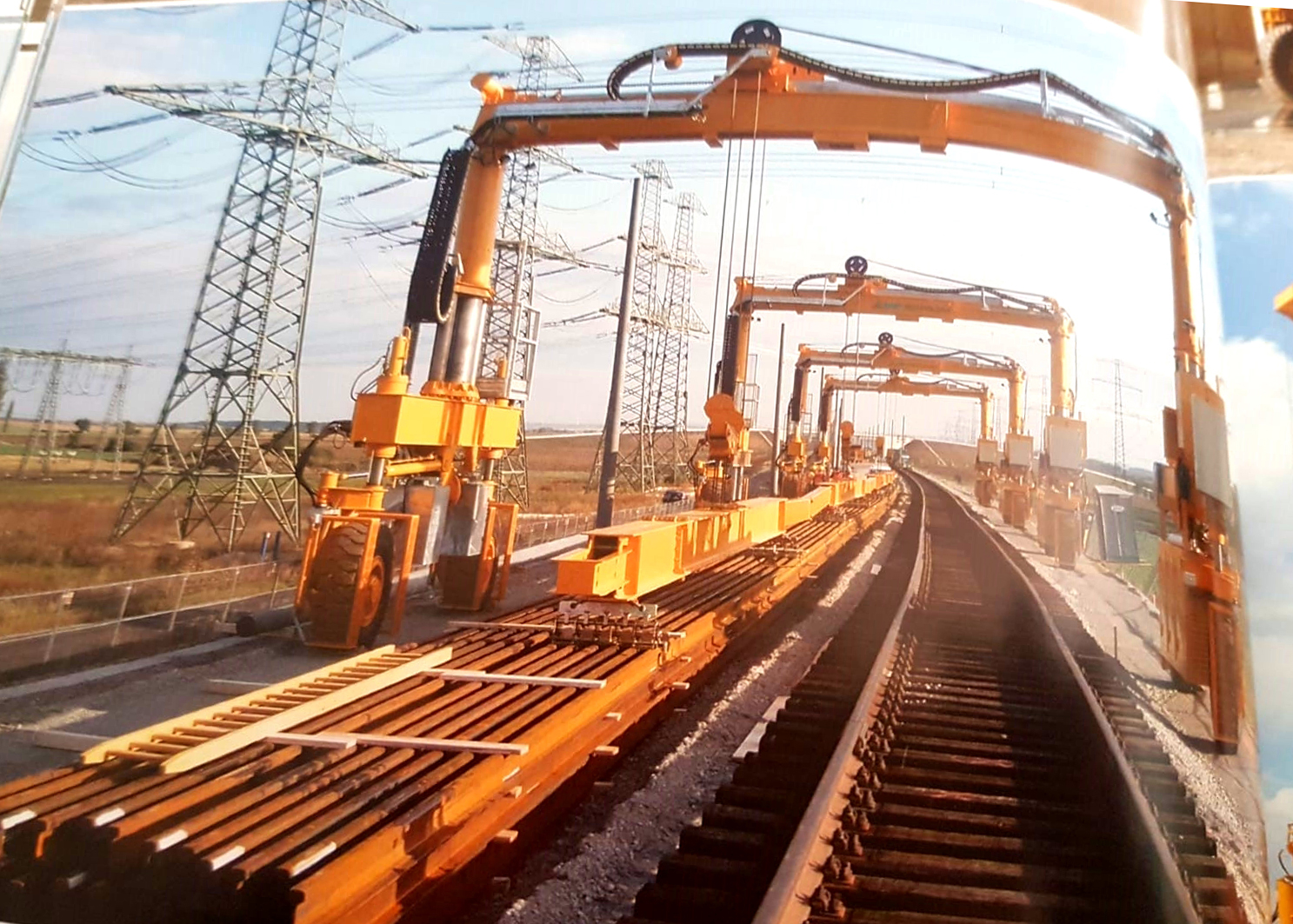

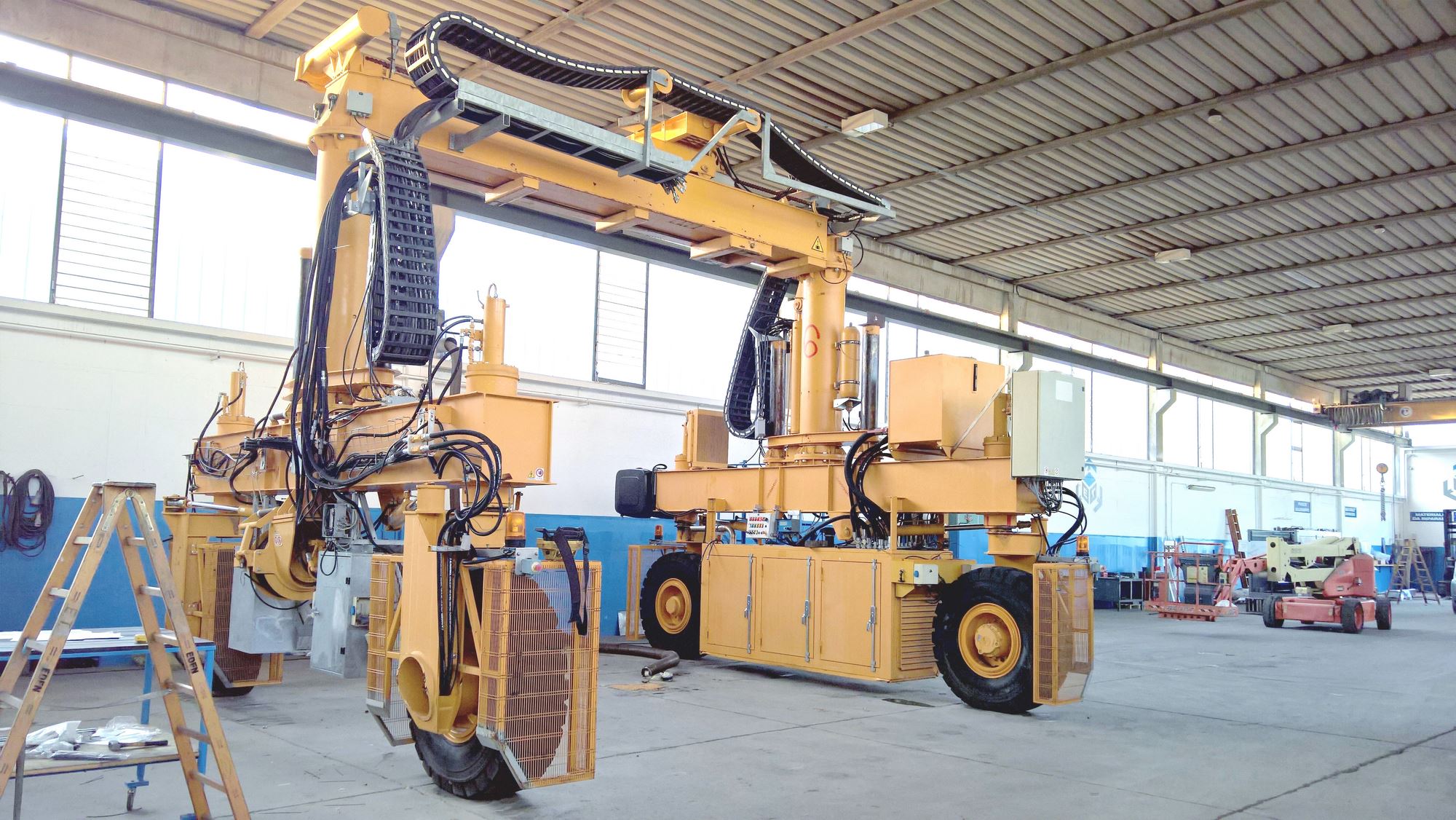

Self Propelled Trucks 20 ton year 2013

  • Code: ABRB001
  • Manufacturer: Manufacture
  • Description:
    • Marca/make Manufacture
    • Modello/type 20 ton
    •
    • 1. Load and Lifting/Carico e Sollevamento:
    • Carrelli semoventi disponibili/self-propelled trucks N. 6
    • Capacità massima di sollevamento della SC sotto il gancio/max lifting capacity of the SC under the hook  20 ton
    • Spreader not included/spreader non incluso
    • Number of lifting points (trolleys)/Numero di punti di sollevamento (carrelli) N. 1
    • Max load under each tyre static/carico massimo sotto ogni pneumatico statico  16,50 ton
    •
    • 2. Dimension and structure/Dimensione e Struttura:
    • Track/traccia 5850-9750 mm
    • Cylinder for track adjustment (q.ty-stroke)/Cilindro per la regolazione della traccia 1 - 3000 mm
    • Clear width inside the machine/larghezza all'interno della macchina 4850-8750 mm
    • Wheelbase/passo 5000 mm
    • Maximum overall width/larghezza complessiva massima 7100-11000 mm
    • Max length/lunghezza massima 6700 mm
    • Max height under the hook/altezza massima sotto il gancio 4340-5490 mm
    • Maximum height/altezza massima 6690-7840 mm
    • Cylinders for height adjustment (q.ty-stroke)/cilindri per la regolazione dell'altezza 2 - 1150 mm
    • Dead weight of the SC/peso morto della SC 23 ton
    •
    • 3. Steering System/Carrelli e Pneumatici
    • Steering type/tipo di sterzo Ackermann
    • Steering wheels/ruote sterzanti N. 4
    • Steering forces generated by hydraulic cylinders/forze di direzione generate da cilindri idraulici
    • Steering angle normal use/uso normale dell'angolo di sterzo +/- 30º
    • Steering angle track adjustment (two wheels)/regolazione del binario dello sterzo  90º
    •

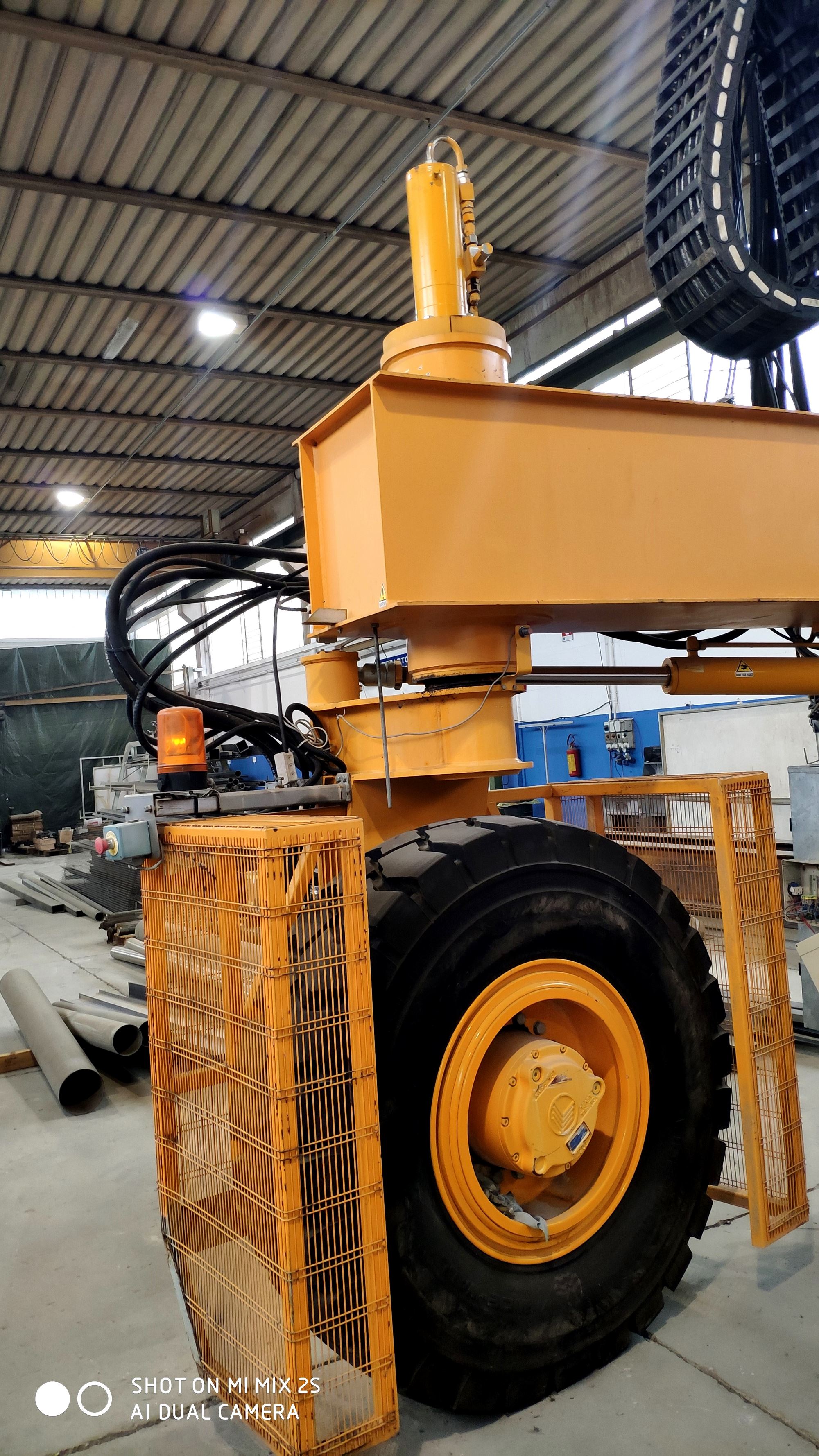

    • 4. Bogies and Tyres/Carrelli e pneumatici
    • Number of tires/numero di pneumatici N. 4
    • Type of tyre/tipo di pneumatico 16,00 x 25
    • Total driven tires/pneumatici guidati N. 2
    • Inflation pressure:pressione di gonfiaggio 9,5 bar
    •
    • 5. Traction and translation speed/velocità di trazione e traslazione
    • Max surmountable slope with 20 ton (pitch – roll)/pendenza massima superabile con 20 tonnellate (pitch-roll) 4% - 3%
    • Hydraulic driven motors/motori motorizzati idraulici
    • Motors with planetary gear mounted/motori con riduttore planetario montato N. 2
    • Travelling speed with load and without load on even ground cement or asphalt/velocità di sollevamento con carico e senza carico 0-10 m/min (variable/variabile)
