Press Ross 50 ton year 2007 CE

• Code: AAOW1692
• Manufacturer: Ross
• Tons: 50
• Description:
  • Make Ross
  • Capacity 50 tons
  • Type 50 R 4 guide

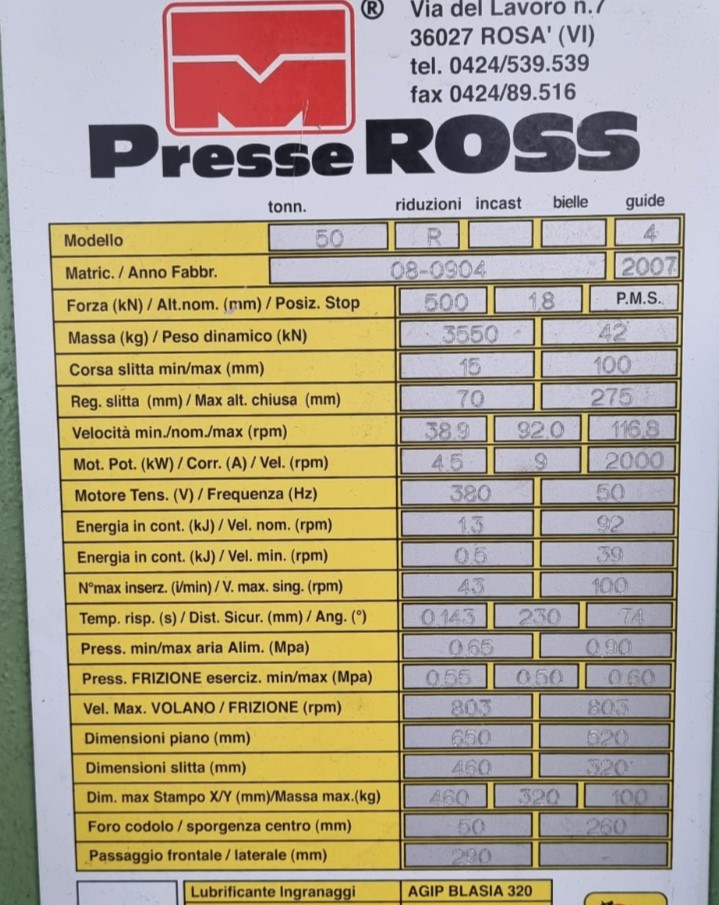

  • Serial number 08-0904
  • Slide stroke min – max 15 - 100 mm
  • Slide adjustment / max at closed 70 - 275 mm
  • Speed min/nom/ max 38.9/92/116.8 rpm
  • Motor power  4.5 kW
  • Motor voltage/ Frequency  380 V - 50 Hz

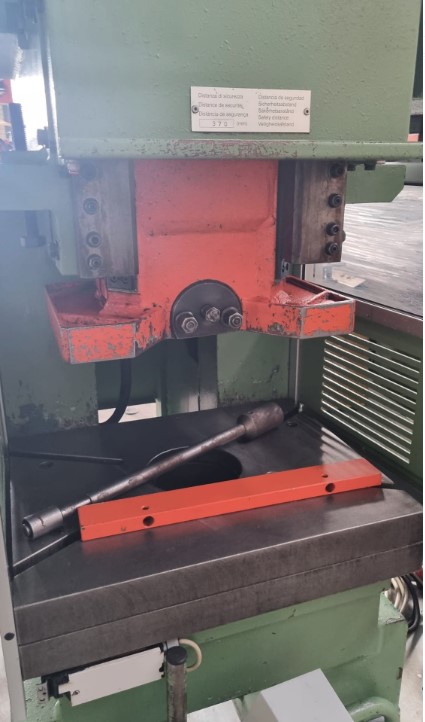

  • Bed 520 x 650 mm
  • Slide 320 x 460 mm
  • Die 320 x 460 mm
  • Shank hole 50 x 260 mm
  • Front clearance 280 mm
  • Hydraulic safety overload
  • Weight  3550 kg
  • Year 2007 CE
