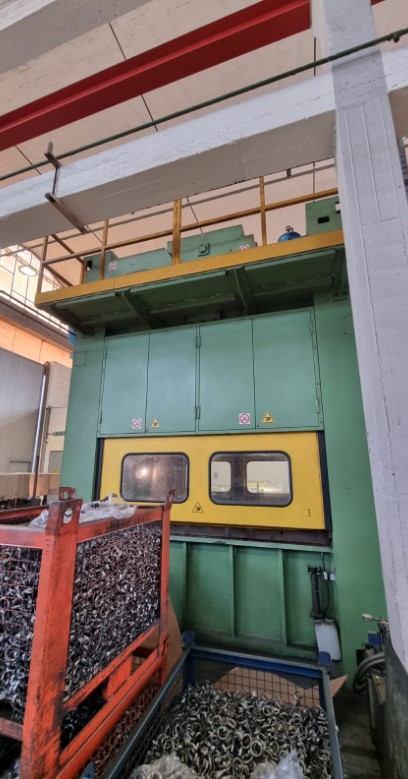

Press Imv 420 ton

• Code: AAOW1735
• Manufacturer: Imv Galli
• Tons: 420
• Description:
  • Brand Imv
  • Capacity 420 ton
  • Model DM 42
  • Serial Number  1637

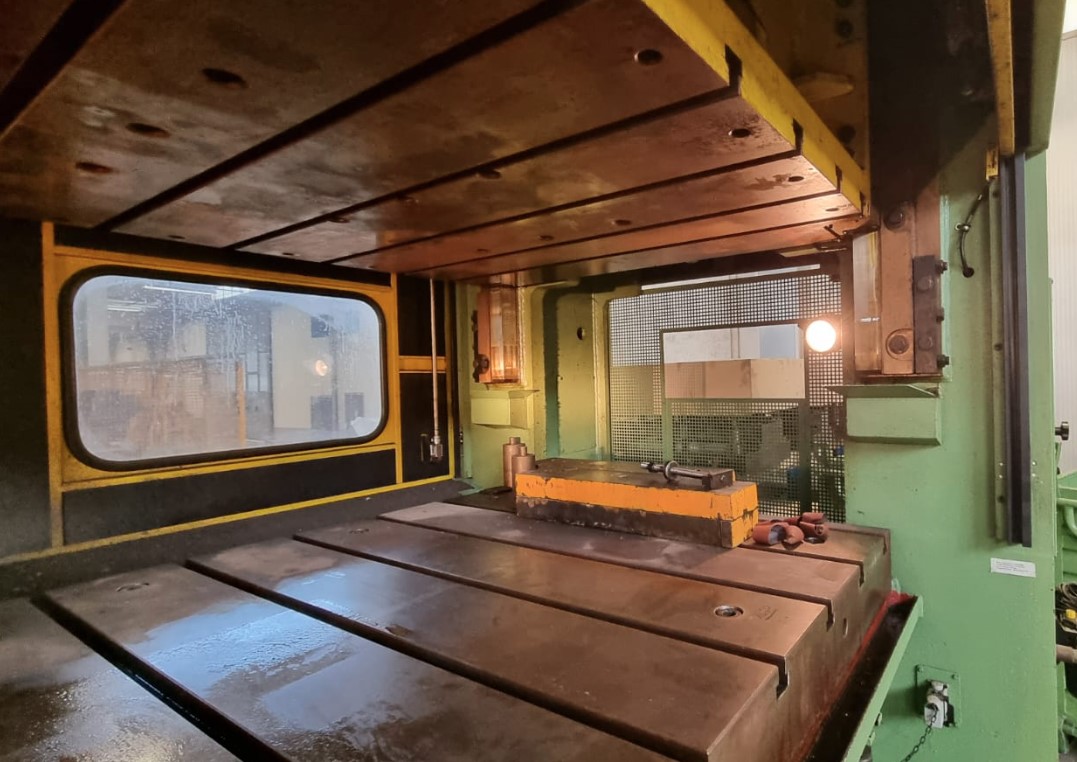

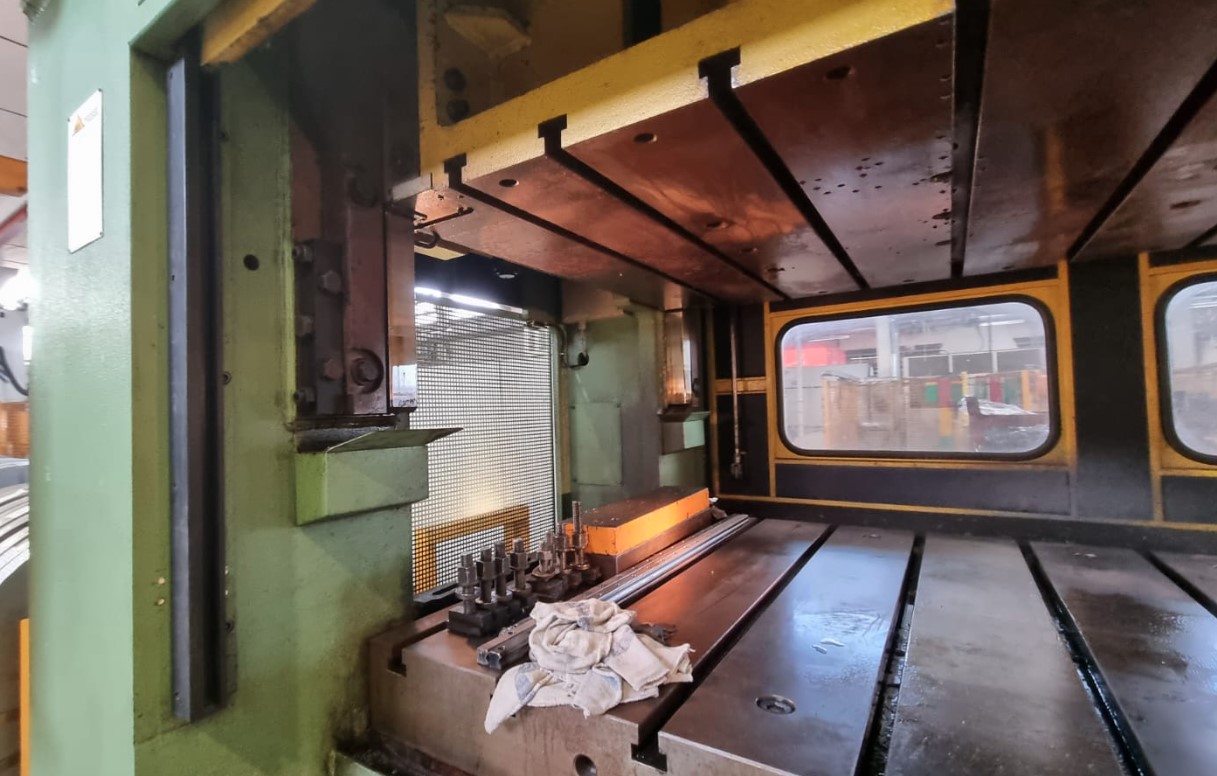

  • Bed Area  2650 x 1500 mm
  • Slide Area  2600 x 1500 mm
  • Front Opening Between Uprights  2700 mm
  • Side Opening Between Uprights  1250 mm
  • Die Dimensions  2500 x 1300 mm
  • Die Weight  9700 kg
  • Maximum Flywheel Speed  1,630 rpm
  • Cycles per Minute  5 – 45
  • Slide Stroke  300 mm
  • Slide Adjustment  200 mm
  • Maximum Height with Die Closed  650 mm
  • Installed Power  5.3 kW
  • Weight  73,000 kg
  • Year  2003 CE
