Drilling and Milling Machine ACM TCP 40

  • Code: AAOW1711
  • Manufacturer: Acm
  • Description:
    • Brand ACM
    • Model TCP 40
    • Type TC VRI DA

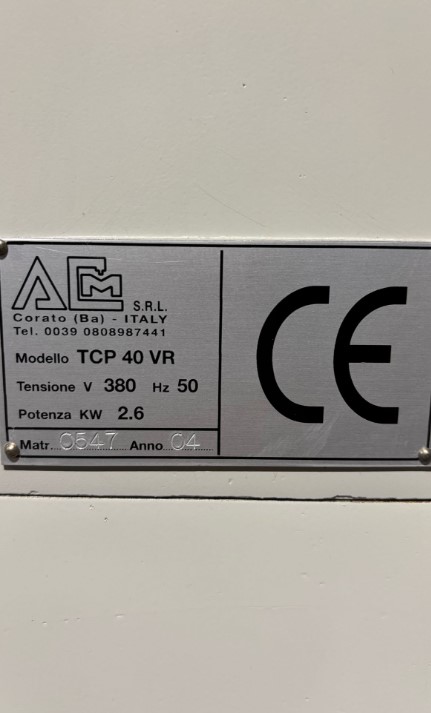

    • Serial Number 0547
    • Maximum Height with Prismatic Guides 1890 mm
    • Base Dimensions 577 x 900 mm
    • Column to Spindle Center Distance 300 mm
    • Table to Spindle Distance 660 mm
    • Fixed Table Dimensions 750 x 450 mm
    • Longitudinal Travel 600 mm
    • Vertical Travel 600 mm
    • Quill Travel 130 mm
    • Sliding Steel Quill Diameter 72 mm
    • Maximum Cross Table Tilt 90°
    • Maximum Drilling Diameter in Steel HRC 50 – 80: 40 mm
    • Maximum Drilling Diameter in Grey Cast Iron HB 200: 45 mm
    • Steel Spindle ISO 40/CM4
    • Motor Power HP3

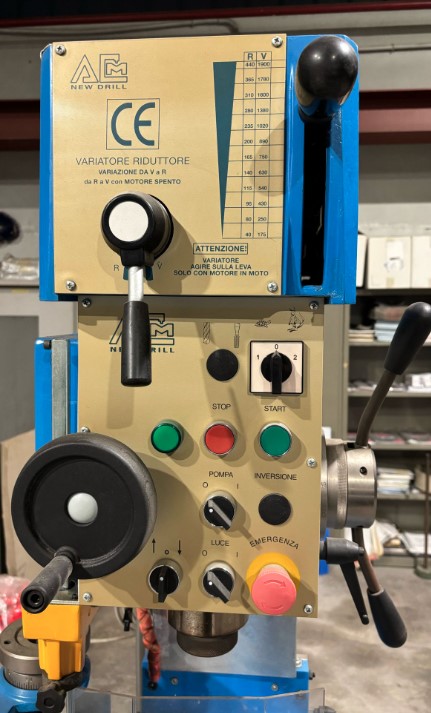

    • Speed Variator
    • Motorized Bench
    • Prismatic Guide
    • 0 Working Hours
    • Year 2005 CE
Download PDF More info
