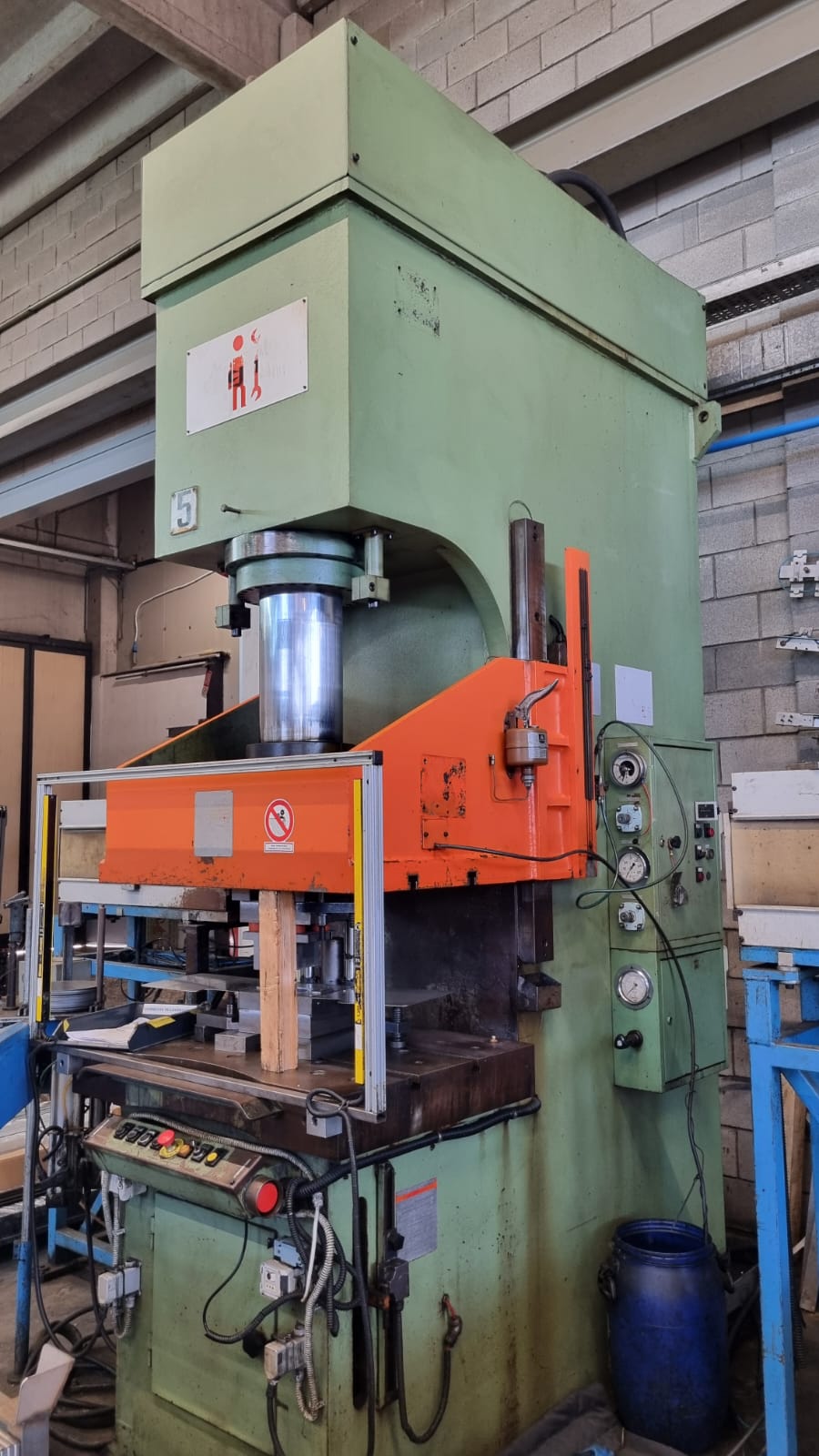

Press Gigant 100 ton

• Code: AAOW1625
• Manufacturer: Gigant
• Tons: 100

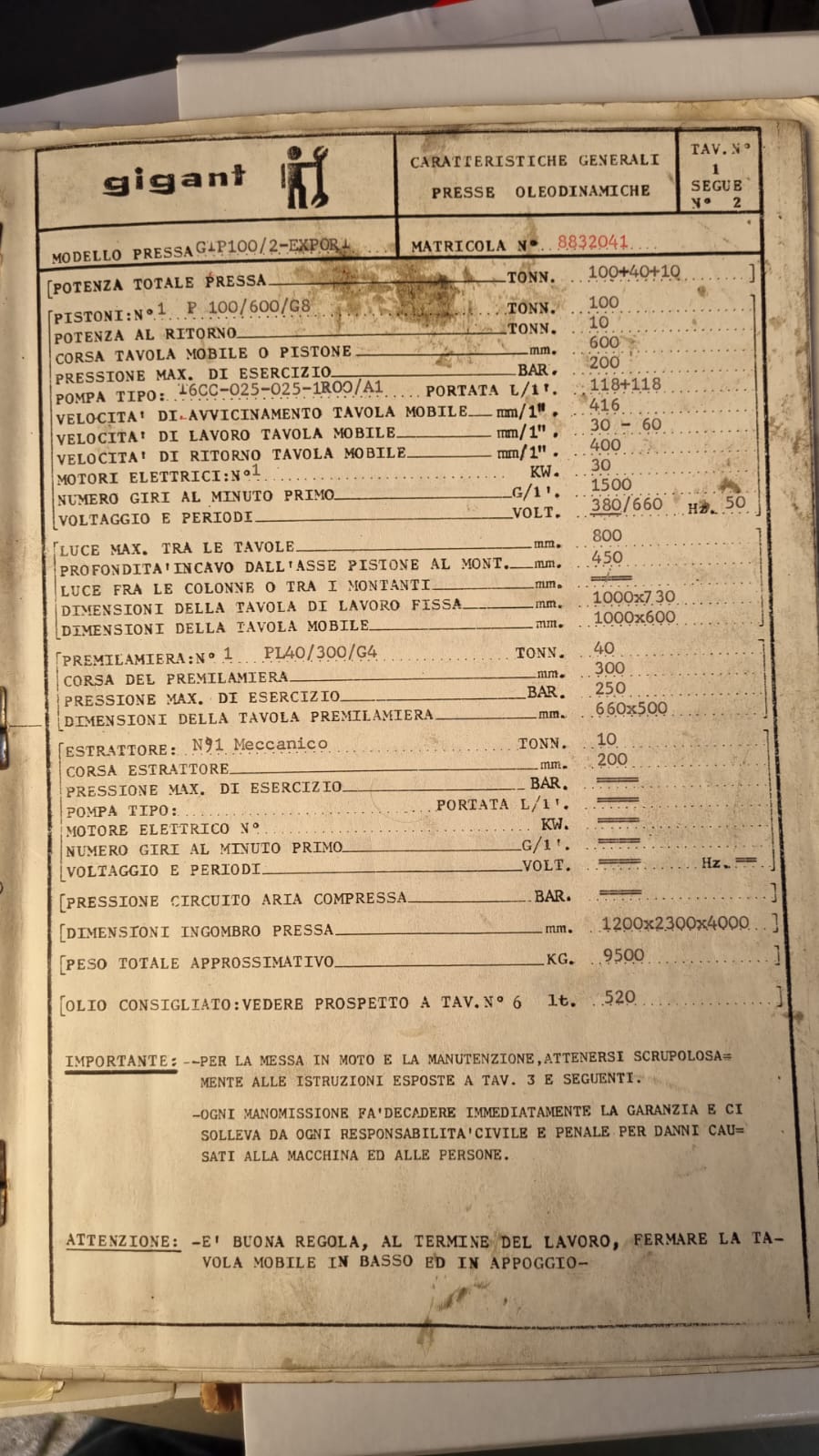

• Description:
  • Brand Gigant
  • Capacity 100 ton
  • Model Gtp100/2 - EXPOR
  • Serial no. 8832041
  • Pistons N1 P100/600/G8 100 ton
  • Return power 10 ton
  • Moving table or piston stroke 600 mm
  • Max. operating pressure 200 bar
  • Pump type T6cc-025 - 025- 1r00/a1 capacity l/1 118 + 118
  • Movable table approach speed 416 mm /sec
  • Moving table working speed 30 - 60 mm/sec
  • Movable table return speed 400 mm/sec
  • Electric motors n1 30 KW
  • Number of revolutions per minute first 1500 G/sec
  • Voltage and periods 380/660 Volt
  • Max. distance between tables 800 mm
  • Depth of piston axle to mount 450 mm
  • Table top 1000 x 703 mm
  • Mace 1000 x 600 mm
  • Sheet press N1 PL40/300/g4
  • Sheet press stroke 300 mm
  • Max. operating pressure 250 Bar
  • Table dimensions pre-blade table 660 x 500 mm
  • Extractor N91 mechanical 10 ton
  • Extractor stroke 200 mm
  • Dimensions 1200 x 2300 x 4000 mm
  • Total weight approx. 9500 kg
  • Oil 520 lt
